Modeling Pneumatic Networks (2)

• Extended example model:

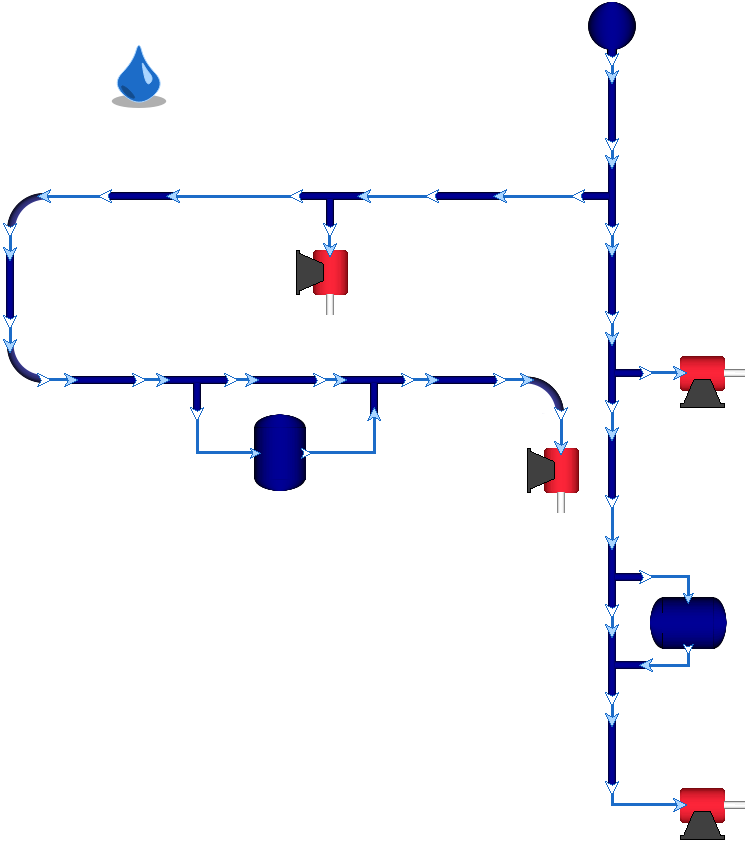

  • adds auxiliary tank betwen two consumers
    •

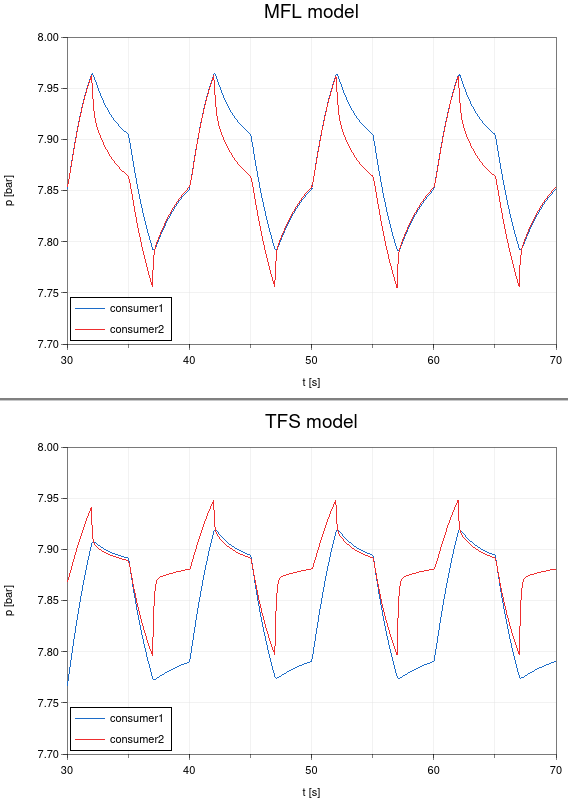

  • results
    •
    • significant deviations due to drastic simplifications in MFL version
    • smaller pressure variation at consumer2
  • stability
    • base model stops at 80 s (consumer at tank 1 is switched on)
    • simple remedy: add small pipe in tank loop
