Modeling Pneumatic Networks (1)

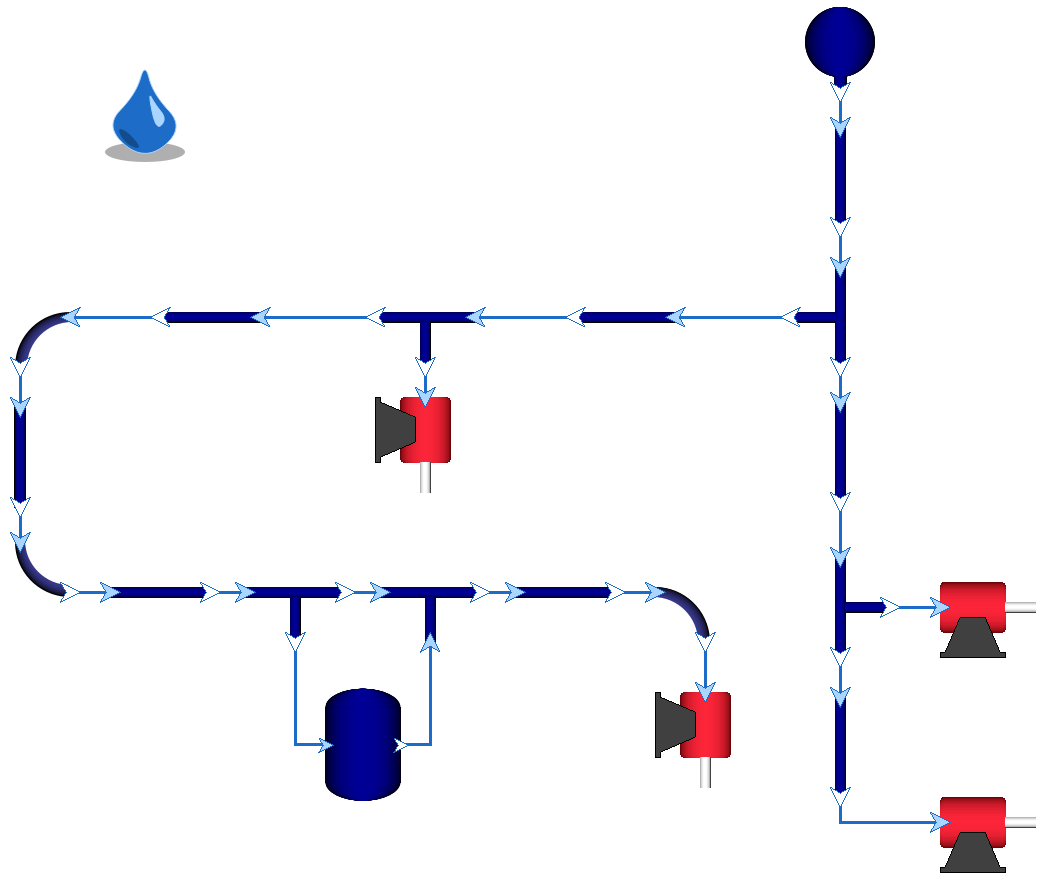

• Example model:
  • network 1
    •
  • difference to MFL version
    • tank has dedicated inflow and outflow
    • connected via a loop with splitter and joiner
  • stability
    • MFL: only runs with simplistic tee branch models
    • TFS: all three versions run with standard initial conditions
    • → preliminary conclusion from tests verified

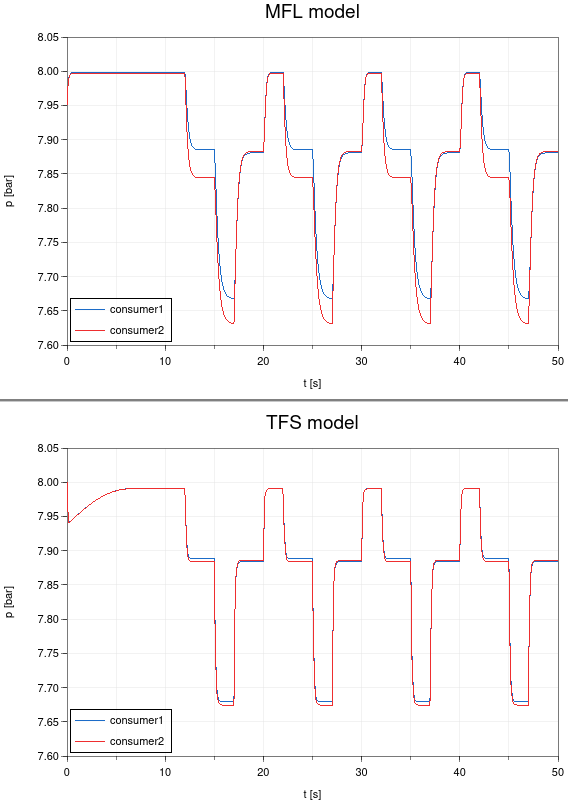

  • results
    •
    • differences between tee branch versions below plot accuracy
    • negligible temperature and density changes
