Modeling Tee Branches (2)

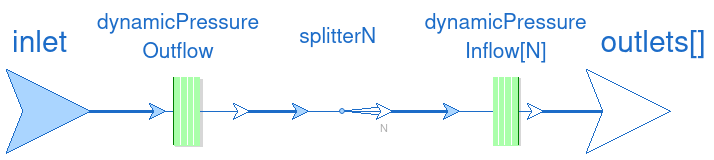

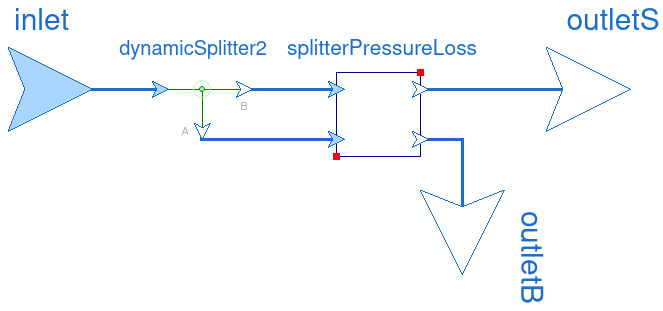

• Variant TeeBranchS1:
  • uses DynamicSplitter from TFS
    •
    • computes dynamic pressure differences using cross section areas
  • adds SplitterPressureLoss component for ζ functions
    •
  • differences to TeeBranchS
    • DynamicSplitter is adiabatic, not isothermal
    • SplitterPressureLoss uses density after DynamicSplitter, not at Inlet
    • 147 equations instead of 28
• Variant TeeBranchS2:
  • basically like TeeBranchS1
  • DynamicSplitter uses densities at input and output streams
  • adds two nonlinear equations inside the component
• Joining components:
  • TeeBranchJ, TeeBranchJ1 and TeeBranchJ2, similar to splitters
  • different handling of r variables
