Example 3: Queueing system (1)

• Basic system:

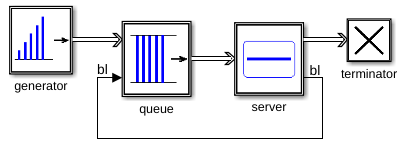

  • queueing system with generator, queue and server
    •
    • blocking signal from server to queue
    • → queue changes state between "Free" and "Blocked"
  • constant values t_G = 1, t_S = 1.5
• Model in PowerRPDEVS:
  • components described as atomics in RPDEVS
    • RPDEVS = revised version of standard PDEVS
    • allows for Mealy components
    • simulator has to change, includes "λ iterations"
  • PowerRPDEVS simulator

    • components described in C++
    • construction of the complete example in a graphical environment
  • run →
    • Error at t = 1.
      maximum number of λ steps has been reached.
      illegitimate model due to a non-resolvable algebraic loop.
  • solver follows outputs through the complete model
    • iterates, until a steady state is reached
  • does not happen here:
    • queue sends entity to server
    • server sends "blocked" to queue
    • queue changes state to "Blocked"
    • queue doesn't send entity
    • server is not blocked
    • queue sends entity to server ...
