Simulation results

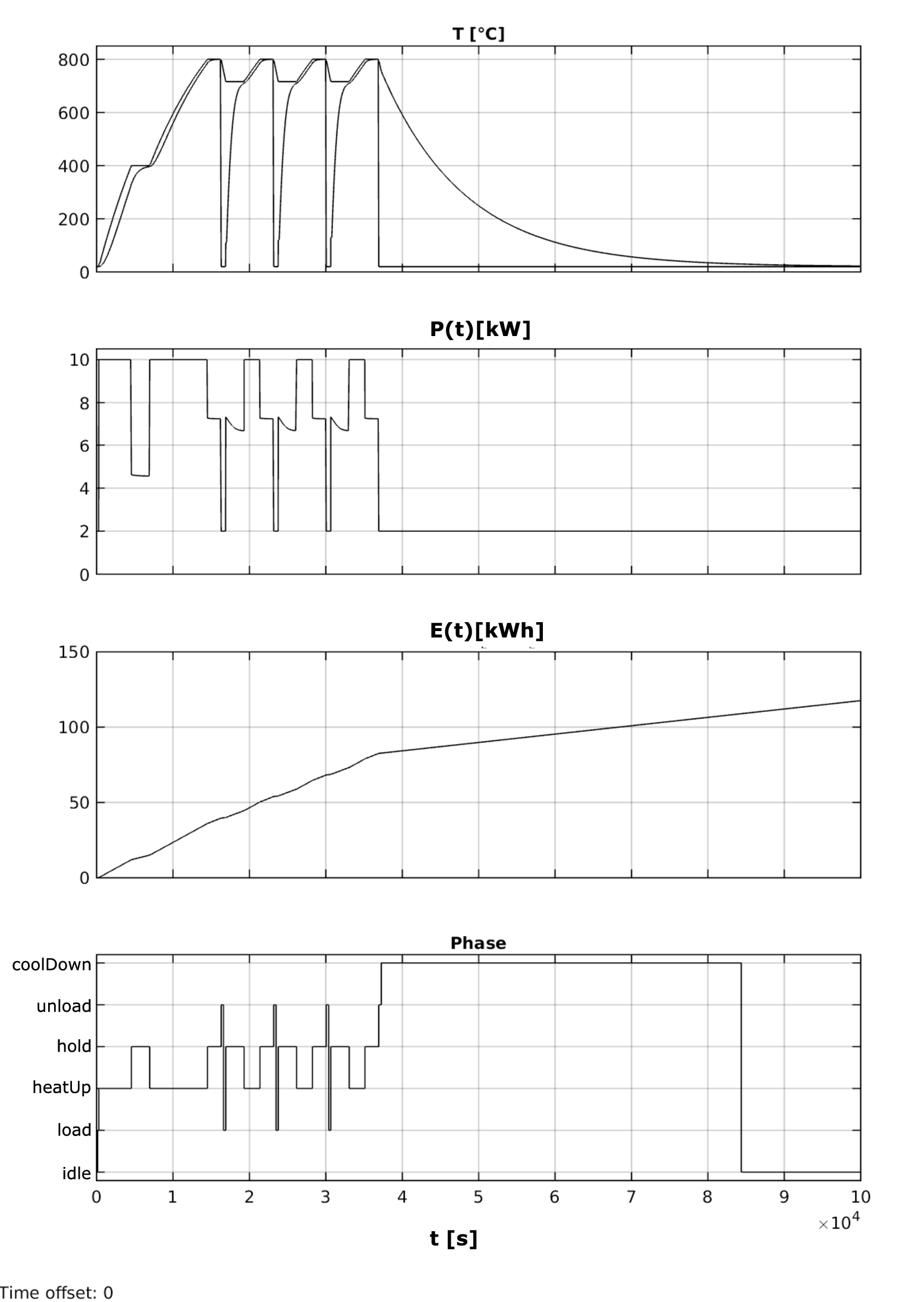

• Example run
  • 24 parts in batches of 6
  • heat program: 40 minutes at 400 °C, 30 minutes at 800 °C
  • most complex model ovenBCC
• Comparison of power results
  • total energy consumption differs only by 10 - 15 %
  • PP(C) includes entering of cold parts → needs more energy
  • different timing of power results with different PP and PC models
• Execution times
  • 600 parts: from 20 s (ovenBCA) to 50 s (ovenBCC)
  • PP(C) (Simscape) is 1.3x slower than equivalent PP(A) (Simulink)
  • PC(B) (SimEvents) is 1.3x slower than almost equivalent PC(C) (Stateflow)
