tut01 - Adding Numbers

• Example tut01:
  • adds incoming numbers
  • model
    •
  • components
    • am_vectorgen generates given output values at given times
    • am_add2 adds two incoming numbers
    • am_toworkspace stores time and value of incoming events in a global output variable
• Running the model:
  • use run script runTut01.m
    • can be used similarly for all models
  • model generator
    • translates Simulink model into Matlab files
    • one file for top-level model
    • files for additional coupled models, if necessary
  • model simulator
    • runs the model for the simulation time
    • cleans up intermediate files
    • returns all outputs in the variable out
  • plotResults01 displays the results
    • uses standard Matlab plot commands
• Plotting the results:
  • simple example plotResults01.m
  • output data in out
    • structure with a field for each am_toworkspace block
    • block data is structure with fields t and y
  • show events using stem plots

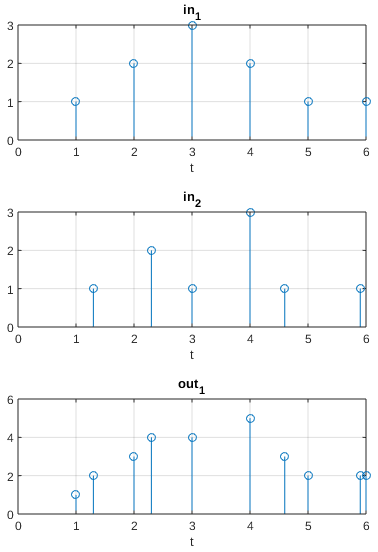

  • result
    •
