Otto and Diesel Processes

• Cylinder model:
  • not included in ThermoDLR
  • built easily

    • extend from PartialVolume
      contains HeatPort, Inlet, Outlet and most variables and equations
    • add a mechanical flange
    • provide simple equations for volume, force and work at the flange

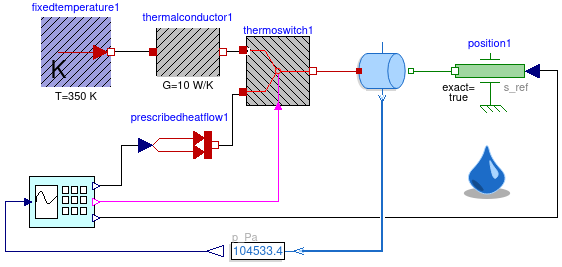

  • works in ThermoSimT testbed
• Otto cycle:
  • Inlet and Outlet switched off
  • validity of SimpleAir has to be extended to higher temperatures

    • SimpleAir(T_min=200, T_max=2000)
• Diesel cycle:
  • Inlet switched off
  • Outlet connected to pressure sensor
    • needed to control pressure for isobaric process
